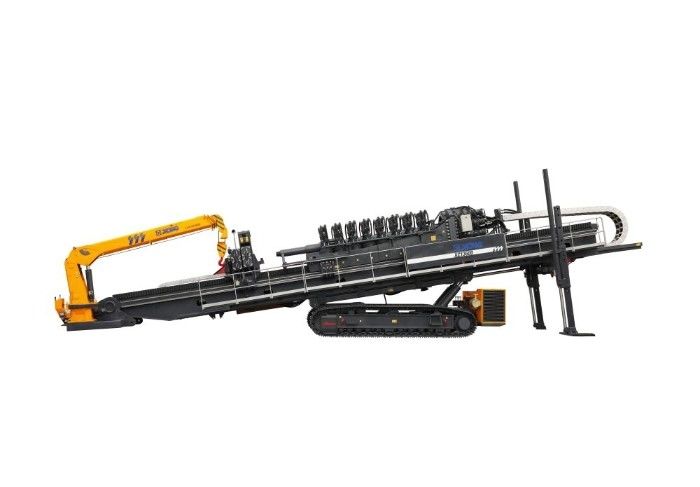

ความละเอียด XZ13600 ระบบเจาะแนวขวาง 15000kN อุปกรณ์ HDD

สถานที่กำเนิด:จีน
ชื่อแบรนด์:Rongchang Machinery
ปริมาณการสั่งซื้อขั้นต่ำ:1 บาท
ราคา:สามารถต่อรองได้
เงื่อนไขการชำระเงิน:แอล/C, ที/ที ฯลฯ
รายละเอียดสินค้า
เน้น:

xz13600 อุปกรณ์เจาะแนวราบ

,

อุปกรณ์ hdd 15000kn

,

อุปกรณ์เจาะแนวขวาง 15000kn

รายละเอียดสินค้า

เครื่องจักร Rongchang ฝังทิศทางแนวราบ อุปกรณ์เจาะแม่นยํา

การตั้งค่าปารามิเตอร์

โครงการ หน่วย XZ13600
เครื่อง - คัมมินส์ M15
พลังงานระดับ kW/r/min 3×472/1800
ความแรงแรงผลักและแรงดึงกลับสูงสุด kN 15000
อัตราแรงผลักและความเร็วถอยหลังสูงสุด m/min 32
ทอร์ค N·m 260000
ความเร็วสูงสุด r/min 100
ความไหลสูงสุด L/นาที ภายนอก
ความดันสูงสุด MPa 10
ท่อเจาะ mm × m φ219/φ254×96
น้ําหนักยก t 10
คราวยก t· m 25
มุมเจาะสูงสุด ° 16
คุณภาพ t 135
ขนาด mm 20000 × 3400 × 4700
คําสังเกต - ไม่ต้องเลือก: 1.ห้องปฏิบัติการแบ่ง; 2.หมุนครึ่งอัตโนมัติ;
